How to set Wi-Fi / Ethernet options on GC100 and GC150 for connection CrossChexLite Software

GUIDANCE:

Option One：WIFI：
Option Two：Ethernet：

Option One  WIFI :
1. Press M to enter the main menu.

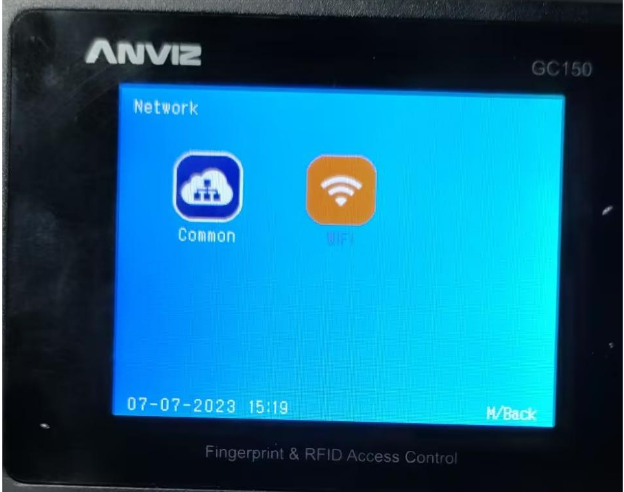

2. Press 3 to enter the network

3. Press 2，enter WIFI.

4. Click Query to obtain the WIFI that needs to be connected, and enter the password. If you need to switch the input method, please press the 'bell button'. Click save when done

5. . Return to the network, click 1, enter general, change to wifi client +DHCP. Click 'Get Local IP', after the beep, it means that the IP has been obtained, record the obtained IP

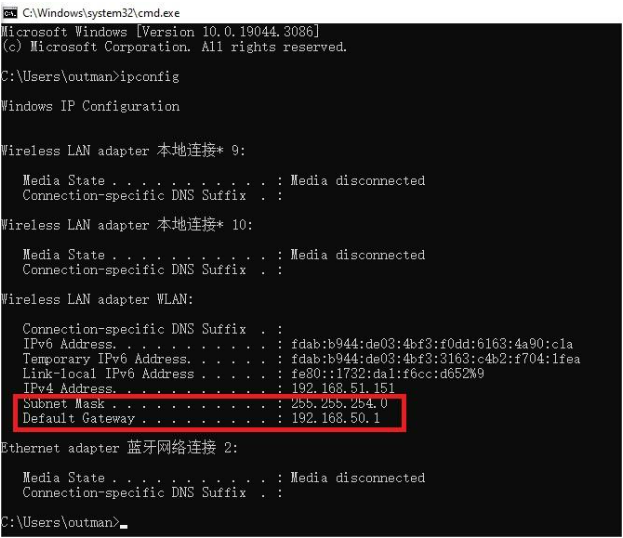

6. Use the computer under the same WIFI to open CMD, enter Ipconfig -all, and get: the subnet mask and gateway under the wireless LAN adapter.

7. Switch to WIFI server + static, change the IP to the IP just obtained, and modify the corresponding subnet mask and gateway, and  click Save

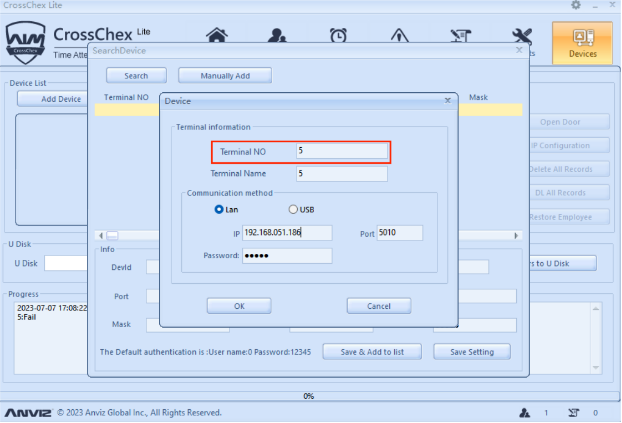

8. After the Wifi connection is completed, use the software to search or add the device manually, and enter the corresponding IP.

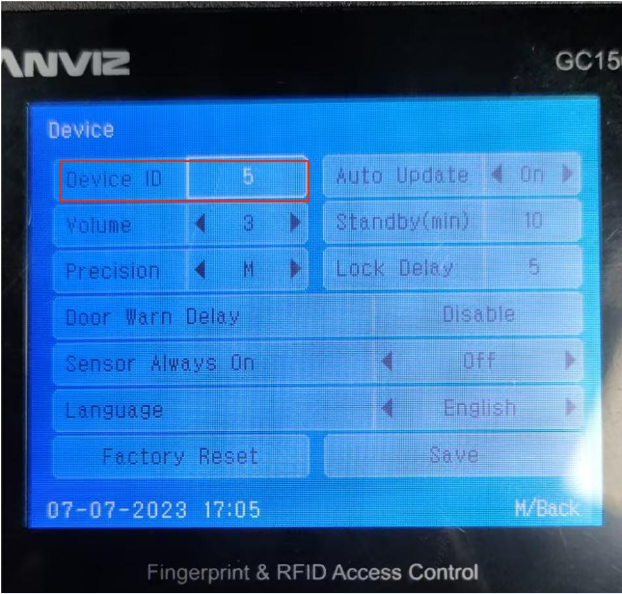

Note that the machine number should be the same as the machine number of the device in System Settings - Machine Settings. Then click 'Save'.

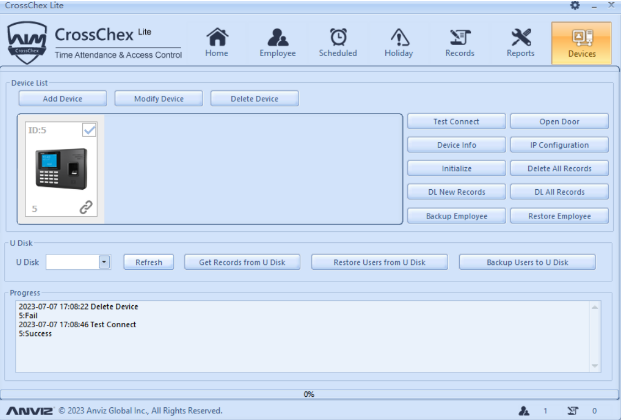

9.Click Test Connection, if the device is displayed and the prompt is successful, it means that the device is successfully connected

Option Two.  Ethernet :
1. First connect the device to a switch with DHCP function, and press M to enter the main menu

2. Press 3 to enter the network

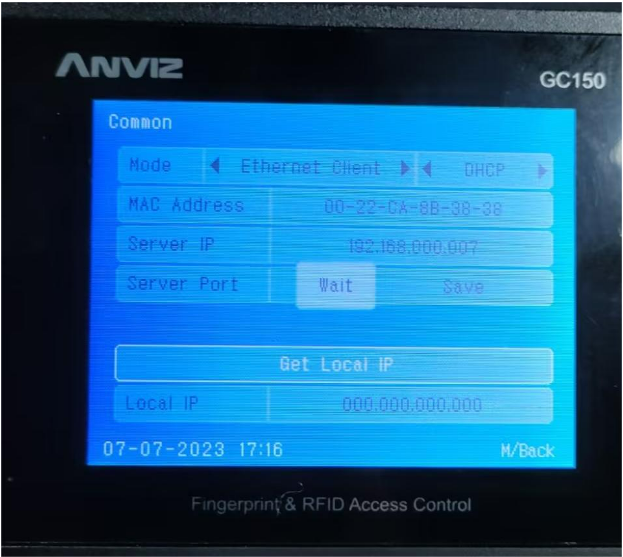

3. Press 1, enter general, change to Ethernet client+DHCP. Click 'Get Local IP', after the beep, it means that the IP has been obtained, record the received IP

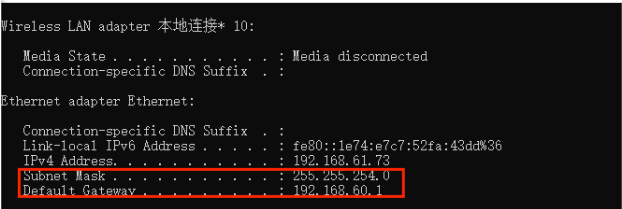

4. Use the computer under the same Ethernet to open CMD, enter Ipconfig -all, and get: the subnet mask and gateway under the wireless LAN adapter.

5. Switch to Ethernet server + static, change the IP to the IP just obtained, and modify the corresponding subnet mask and gateway, and click Save.

6. After saving, use the software to search or add the device manually, and enter the corresponding IP. Note that the machine number should be the same as the machine number of the device in System Settings - Machine Settings. click save


7. Click Test Connection, if the device is displayed and the prompt is successful, it means that the device is successfully connected
